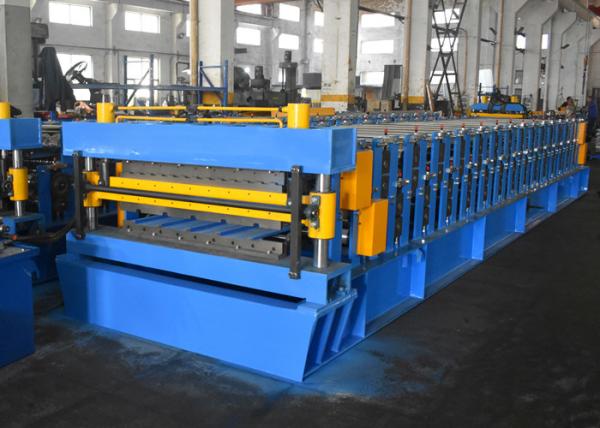

Color Steel / Galvanized Steel Roofing Sheet Roll Forming Machine With Double Layer Design

Description

Like a single layer roof/wall sheet roll forming machine, double layer machine is also used for producing metal roof/wall sheet with galvanized steel coils or color coated steel coils. The difference is that with double layer design, one machine can produce two different roof or wall cladding panels.

Two sets of roll forming units are installed on common machine base, and both up and bottom roll forming units share the decoiler, motor, control system, hydraulic system. So double layer machine solution has the advantages of saving cost and floor area. But both up and bottom layer can not work at the same time. When clients need large and continuous production, we do not suggest double layer design.

Machine Layout For Reference

Popular roofing profiles: corrugated sheets, IBR sheets, AG panels, R101 panels, box profiles, widespan, IT4, IT5 profiles, etc. Send us detailed information of the roofing sheet you want to produce, we ensure both machine quality and finished products quality.

Roll forming machine with double layer design is one of the machine solutions for producing two different profiles in one machine. We also have other machine designs for producing different profiles to save cost for clients, such as rafted type. Contact us for more machine details.
