Warehouse Storage Racks Upright Teardrop Frames Roll Forming Machine

Description

Storage rack upright teardrop frames are roll formed sections which play an important role in storage system. Believe Industry Company manufactures rollformers that can make upright post of 75mm width and 100mm width with 1.6mm to 2.5mm thick material.

Our storage rack upright post rollforming line includes basic design production line, automatic size adjust production line, rafted design production line and high speed design rollforming lines. Each machine can be customized to meet clients' needs.

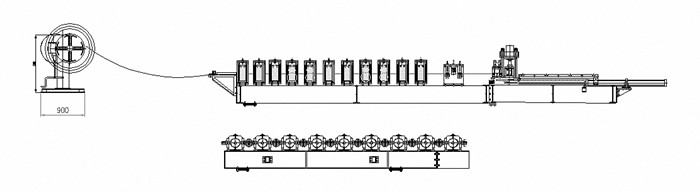

Upright Post Line Layout And Main Components

• Line Direction: left to right
• Work Process Of Whole Line: decoiling --> feeding and guiding --> roll forming --> straightening --> cutting --> final products
• Users have another line to level the material, punch patterns on and then recoil it first.
• We have fully automatic upright post line with inline levelling unit and punching unit
• Whole line consists of 3Ton decoiler, leveller, punching unit, roll former, straightener, cutting unit, etc

Teardrop Frame Punching Pattern
