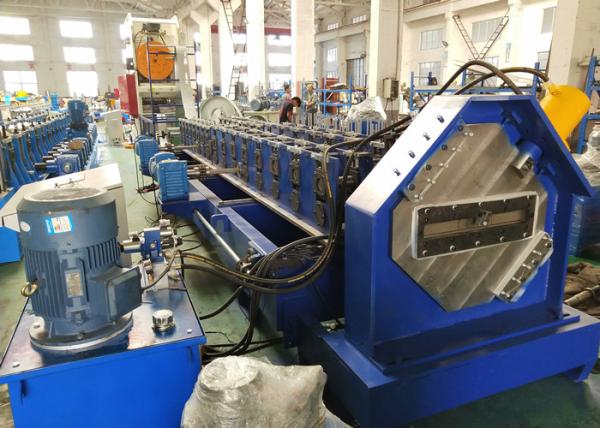

100-600mm Perforated Cable Tray Roll Forming Machine

Description

Cable trays are cold roll formed structural sections used to securely fasten or support electrical cables for power distribution, control and communication. Believe Industry Company design and manufacture cable tray roll forming machines for various types of cable trays: solid-bottom tray, ventilated tray, ladder tray and channel tray.

This machine can be used to produce cable trays with 100-600mm width, 35-100mm height. Speed of whole production can reach up to max. 15m/min. Whole roll forming line consists of 5Ton hydraulic decoiler, levelling unit, punching press, roll forming unit, cutting device and run-out tables.

100-600 Cable Tray Sizes

Features

• Can make a range of sizes, material thickness, punching hole patterns and profile features according to clients' requirement.
• Sizes can be adjusted automatically, users only need to key in required size data on the touch screen.
• No need to change cutting blades for each tray size.
• Rollers go through vacuum heat treatment for great hardness.
• High precision of punching, roll forming and cutting.

Cable Tray Roll Forming Machine Work Video: https://believeindustry.company/cable-tray-roll-forming-machine-working-video/

Machine Layout And Work Process

Work Process: decoiling-->levelling-->punching-->roll forming-->cutting

Detailed Specification
