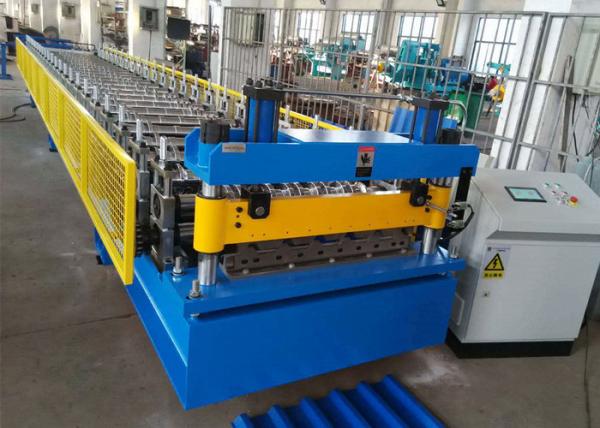

Color Coated Steel Roof Panel Roll Forming Machine, 6 Ribs Roofing Sheet Roll Former

Brief Description

This roll forming machine is make for produce rib-roof metal panels, also known as trapezoidal profile. Rib-roof panels are not only suitable for roofing and walling claddings, but also can be used for decorative panels and fencing panels.

Main material can be roll formed to this 6-rib steel roof panels are color coated steel coils with 0.3mm to 0.7mm thickness and 914mm material width. Based on clients' roofing profiles, BELIEVE INDUSTRY COMPANY can also build cold roll forming machines for trapezoidal sheets with 5 ribs, 9 ribs, 11ribs, and 13 ribs, etc.

Whole Roof Panel Production Line

1 ---> 5Ton Automatic Decoiler

2 ---> Entry Feeding Guide

3 ---> Roll Forming Stations

4 ---> Hydraulic Cutting Device / Hydraulic Shear

5 ---> Product Receiving Table

6 ---> Electric Control Cabinet

7 ---> Hydraulic Station

Work Process: steel coil unwinding--->material infeeding and guiding--->roll forming--->cutting--->output final proucts

Technical Specifications

More Roofing Sheet Roll Forming Machine for corrugated panels, IBR sheets, R101 sheets, tile roof panels, clip lock profiles, conceal fixed roofing, etc.

BELIEVE INDUSTRY COMPANY is one professional enterprise supplying one-stop service for roll forming machines and coil process equipment. We have an energetic team experienced in designing & manufacturing, import & export trading, installation & after-sale service. Our factory is located next to Shanghai in Wuxi, Jiangsu Province. All our machines are custom-made exactly, and enjoy high popularity in domestic and foreign market, particularly in Southeast Asia, Europe, America, Africa, Middle East, Australia, Canada, etc.
