100-600mm Width Steel Perforated Cable Tray and Cable Channel Roll
Forming Machine
Brief Description
Cable trays are cold roll formed structural sections used to
securely fasten or support electrical cables for power
distribution, control and communication. Believe Industry Company
designs and makes cable tray roll forming machines for various
types of cable trays: solid-bottom cable tray, ventilated cable tray, cable ladder and cable channel.
This machine can produce cable trays with 100-600mm width and
50-150mm height. Whole roll forming line consists of 6Ton hydraulic
decoiler, levelling unit, punching press, roll forming unit,
cutting device and run-out tables.
| No. | Cable Tray Width (mm) | Cable Tray Height (mm) |
| 1. | 100 / 150 | 35 / 50 / 80 / 100 |
| 2. | 200 / 300 / 400 / 500 / 600 | 50 / 80 / 100 / 150 |
* Customized machine designed according to required sizes, material
thickness, punching hole patterns and profiles.
* Automatic sizes adjustment, easy operation and time saving.
* Pre-cutting type, no need to change cutting blades for each tray
size.
* Rollers go through vacuum heat treatment for great hardness.
* High precision of punching, roll forming and cutting.
Machine Layout and Work Process
Work process: decoiling - levelling - punching - roll forming -
cutting
Main Technical Parameters
1. Raw Material Information
1.1 Material can be used: cold rolled steel coils; hot rolled steel
coils; galvanized steel coils
1.2 Material thickness: 0.7-2.0mm
1.3 Material strength: 235-345Mpa
2. Machine Technical Parameters
2.1 Decoiler type: 6Ton hydraulic decoiler, electric unwinding and
hydraulic expansion and tension
2.2 Levelling Unit: 9-roller design, upper 4 and bottom 5 rollers
for levelling the material before punching and roll forming
2.3 Material of levelling rollers: 40Cr solid shafts with 70mm
diameter
2.4 Roll forming steps: 20-28 steps
2.5 Main power: 11kw * 2 electric motor for roll forming
2.6 Material of shaft: 40Cr solid shafts with 80mm diameter
2.7 Material of rollers: GCr15, HRC58-62
2.8 Roll forming speed: 8-15m/min not including punching and
cutting
2.9 Control system: automatic PLC control system
2.10 Drive system: electric motor drive via chain
2.11 Punching type: hydraulic punching unit; punch press
2.12 Material of punching mold: Cr12Mov, HRC58-62
2.13 Cutting system: hydraulic cutting type, pre-cutting before
roll forming
2.14 Power for cutting: 7.5kw
2.15 Material of cutting blade: Cr12Mov, HRC58-62
2.16 Cutting length tolerance: +/- 1.5mm

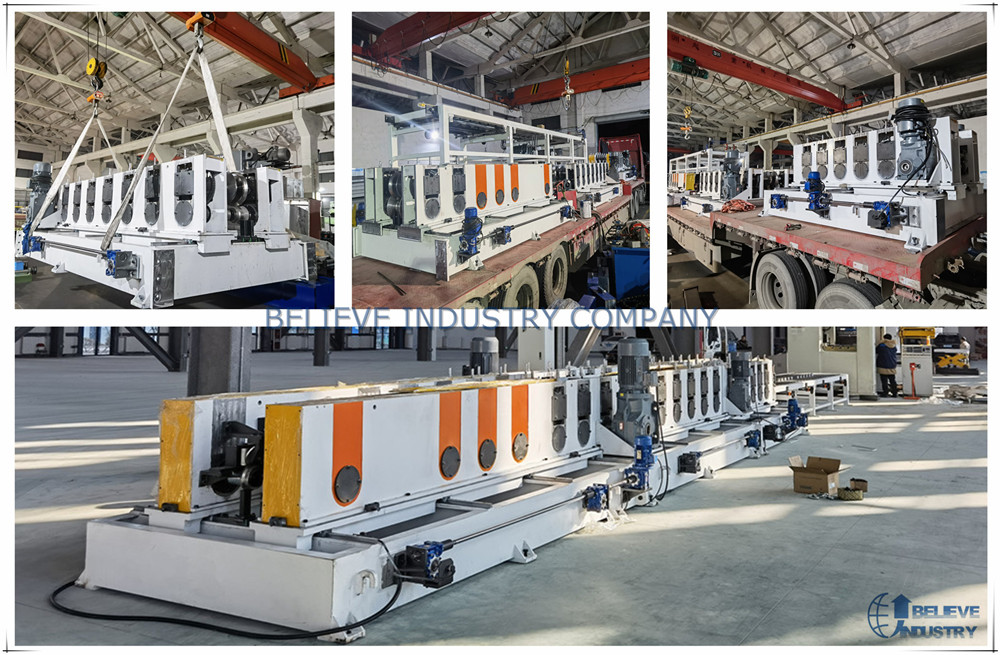

More Pictures for Reference
If you need more machine details, please contact us directly.
