Color Steel Glazed Tile Roof CNC Roll Forming Machine For European Style

Brief Description
Believe Industry Company customize cold roll forming machine according to clients' profile drawing and personal requirement. This metal tile roll former is designed to produce metal tiles with 35mm depth, 192mm pitch distance and 960mm cover width.

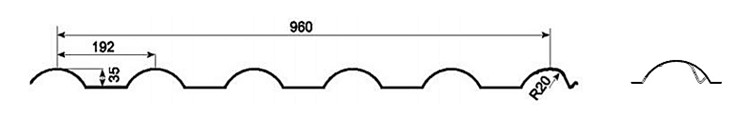

Material Information		Profile Drawing
1.	Model: YX35-192-960
2.	Material Width: 1220mm
3.	Effective Width: 960mm
4.	Coil Material: galvanized coils
5.	Material Thickness: 0.5-0.7mm

Machine Standard Features

• This automatic roll forming line integrates cold roll forming technology, punching technology, hydraulic cutting technology and electric control system.
• Runs up to 0.7mm thick steel
• H beam steel welded machine frame / base processed by CNC precision milling machining.
• Solid shafts of 75mm diameter.
• Rollers is covered with 0.05mm chrome after processing and heat treatment
• PLC control system with button and color touch screen control panel
• Ease of operation, adjust and maintenance

Machine Workflow And Main Components

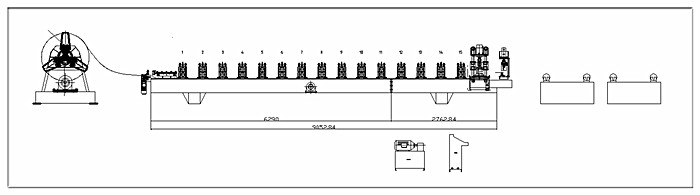

Work process of the whole line is: coils being loaded on the decoiler, unwinding, feeding to the roll former, deviation adjust of the material, roll forming to required roofing profiles, punching tile steps, cutting to desired length and finally come out the tile shape roof panels.

Main Machine Technical Parameters

1. Forming Steps / Roller Stations: 18 steps / 18 stations

2. Main Motor Power: 5.5kw

3. Roll Forming Speed: 10-15m/min not including punching and cutting

4. Whole Line Speed: 3-4m/min including punching tile steps and cutting

5. Shaft Material: 40Cr; diameter: 75mm

6. Roller Material: 45# steel quenching and tempering; surface with 0.05mm chrome plated

7. Cut / Shear: hydraulically powered shear

8. Hydraulic Power: 7.5kw

9. Cutting Blades: hardened steel blades and cutting dies, Cr12Mov, HRC58-62

10. Drive: electrically driven via chain, sprocket and gear

11. Control System: PLC control system
