Rafted Type Custom Pallet Racking Roll Forming Machine

Brief Description:

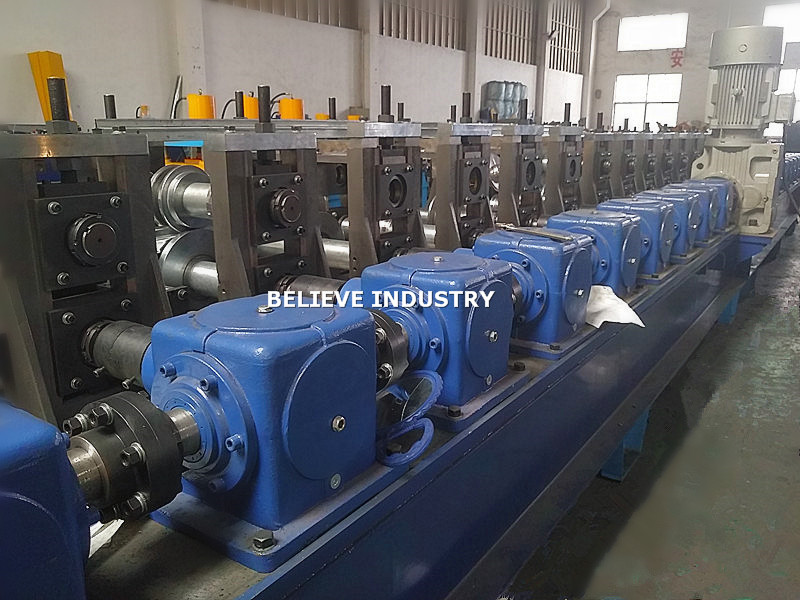

This roll forming machine is used to produce upright racks according to customer's profile and requirement. This machine employs rafted structure, roll forming stations can be wholly lifted as a raft, which is easily to change the roll forming of another profile of upright racks. This machine employs gear box transmission system, servo flying cutting device, high speed punching machine, which ensures the stable machine capacity at a high speed.

Main Components Of Pallet Racking Machine

Work Process Of Pallet Racking Machine

Decoiling--Punching--Material Leveling--Roll Forming--Product Straightening--Cutting

Main Machine Technical Parameters

1. Applicable Material: cold rolled steel coils

2. Material Thickness: 1.5-2.5mm

3. Main Motor Power: 18.5kw

4. Forming Stations: 22 stations

5. Forming Speed: 15m/min

6. Control System: PLC control system

7. Cutting Power: 4kw

More Pictures Of Pallet Racking Roll Forming Machine

Believe Industry Company, engaged in offering customers with perfect metal forming solutions, please contact us for machine details.

BELIEVE INDUSTRY COMPANY is one professional enterprise supplying one-stop service for roll forming machines and coil process equipment. We have an energetic team experienced in designing & manufacturing, import & export trading, installation & after-sale service. Our factory is located next to Shanghai in Wuxi, Jiangsu Province. All our machines are custom-made exactly, and enjoy high popularity in domestic and foreign market, particularly in Southeast Asia, Europe, America, Africa, Middle East, Australia, Canada, etc.
