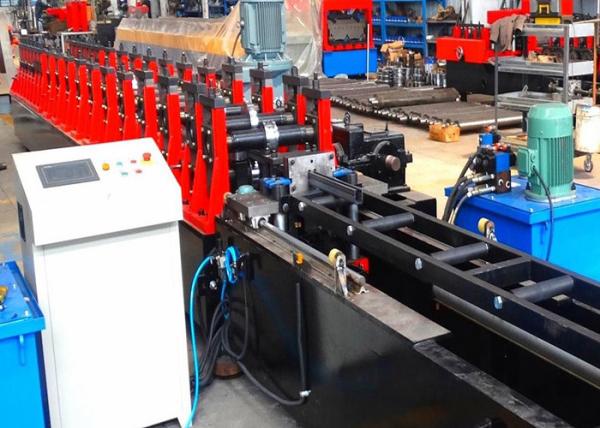

Metal Strut Channel Framing Rollformer Line With Gear Box Drive

Brief Description

This metal roll forming machine is available for producing both plain and slotted strut channels with the dimension of 41 x 41mm. Main material can be roll formed are pre-galvanised steel coils and hot dip steel coils. Whole line is a continous production line including coils unwinding, material levelling, punching slots, cold roll forming and cutting.

Machine Features

• H beam steel welded machine base with cast iron roller stands.
• Machine base and roller stands are processed by CNC gantry milling machine for high precision.
• Whole line is controlled by PLC control system.
• Electrically driven via gear box.
• Servo flying cutoff for high-volume production.
• High speed and high precision power press equipped for punching slots before roll forming.
• Good flatness and straightness of final products.
• High degree of cutting accuracy with low burr.

Most Essential Parameters

1. Coil Can Be Roll Formed: pre-galvanized coils, hot dip galvanised coils, stainless steel coils 2. Coil Thickness: max 2.5mm 3. Whole Line Speed: 15-20m/min ( line speed including levelling, punching, roll forming and cutting ) 4. Roller Stations: 20 staions 5. Main Power For Roll Forming: 45kw 6. Hydraulic Power: 7.5kw 7. Capacity Of Power Press: 80Ton

Whole Rollformer Line Components

All purchased parts are selected from famous local brands or from international famous brands as request. Such as Siemens, Mitsubishi electric elements, NSK, SKF bearing, etc.

Believe Industry Company also has economical machine designs with perfect performance. Final products are also with good quality, main difference is the production effeciency may be a bit lower.
