High Speed Roll Forming Machine Parts , Double Head Decoiler With Seven - Roll Leveler

3Ton Double Head Decoiler + 7-Roll Leveler

Brief Description

Decoiler is one of the most important parts included in a metal roll forming line, According to loading capacity, Believe Industry Company has 3Ton decoiler, 5Ton decoiler, 8Ton decoiler and 10Ton decoiler. According to decoiler design, Believe Industry Company has single mandrel decoiler and double head decoiler. Double head decoiler carries two coils, when one is run out, rotate the decoiler to change another coil for continuous production. With a double decoiler, users save a lot of time upload the coils to improve production capacity.

Levelling unit is often used to flattening the material before roll forming to ensure good product quality. According to material information, we have 7-roll leveller, 9-roll levelling unit, 11-roll levelling device, etc.

Double Head Decoiler

1. Type: double side load type with brakes

2. Structure And Function: steel plate and beam welded structure, used for supporting and uncoiling the steel strips.

3. Decoiler Mandrel Length: 500mm

4. Decoiler Mandrel Expansion And Tension: hydraulic expansion and tension

5. Hydraulic Power: 3kw

6. Expansion Range: 480-520mm

7. Decoiling/Unwinding: unpowered unwinding, no motor drive

8. Maximum Capacity: 3000kg on each side

9. Coil I.D: 508mm; Max Coil O.D: 1350mm

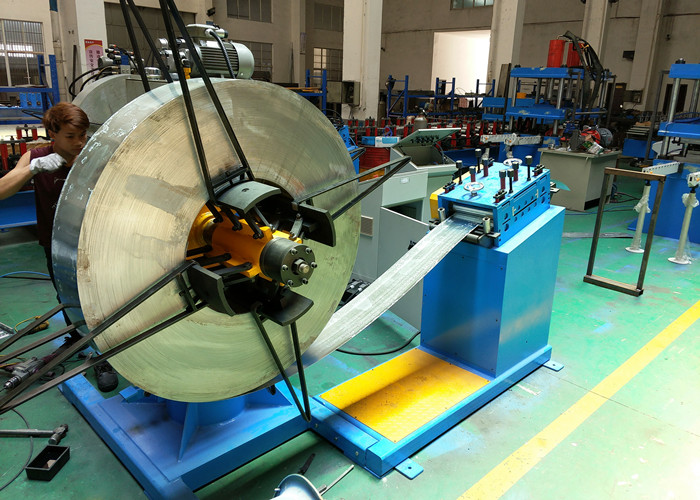

Double Head Decoiler Applied To A Top Hat Section Rollforming Line

7-Roller Levelling Unit

1. Type: 2-roll pinch feeding, 7-roll leveling

2. Material Pressing Type: pneumatic press

3. Diameter Of Leveling Roll: 80mm

4. Material Of Leveling Roll: 40Cr, high frequency quenching

5. Motor Power For Leveling: 3kw motor

6. Main electric parts are all of famous brand

For more machine details and specifications, please contact us.
