2 in 1 Light Steel Frame Roll Forming Machine For Top Hat Sections

Brief Description

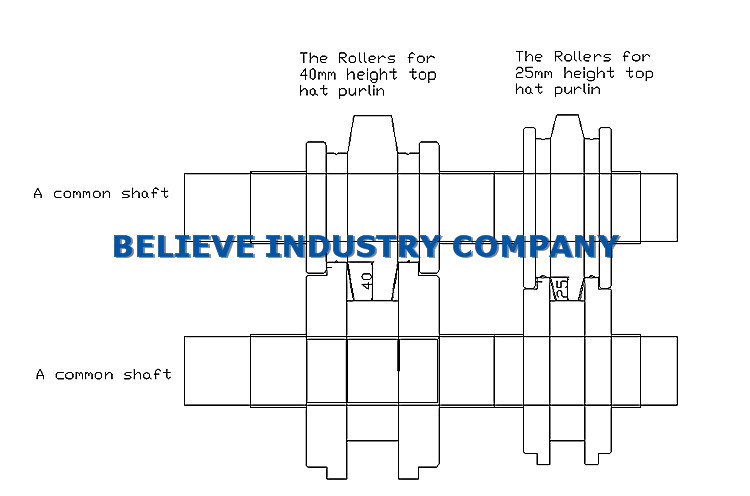

This twin row roll forming machine can produce 2 different sizes of top hat sections or named as ceiling battens at the same time. Compared to conventional cold roll forming machines which can only produce one profile in one machine, this machine greatly increase the production effeciency and save a lot of energy for customers.

Machine Features

• Can be used to roll form max 1.0mm thickness galvanized steel coils
• Two dimensions of steel sections can be roll formed in one machine at the same time
• Steel tube welded machine structure with motor, hydraulic station and control system placed inside to save space
• Guide-pole type roller stands can be easily disassembled for adjust and maintenance.
• Electrically driven by 1.2" chain and sprocket
• Hydraulic powered cutting device with 2 sets of separated cutting blades for each dimension

Work Flow: steel coil loading--coil unwinding--material entry guiding--roll forming--cutting--end product

Main Machine Components And Technical Parameters

Whole Line Components

Most Important Parameters
