    Custom Metal Roof Roll Forming Machine , PU Sandwich Panel Top & Bottom Sheet Roll Former

    Ask Lasest Price
    Brand Name : Beli
    Certification : CE
    Price : Contact Us For Best Price
    Payment Terms : T/T, L/C
    Supply Ability : 20 sets/ Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Custom Metal Roof Roll Forming Machine , PU Sandwich Panel Top & Bottom Sheet Roll Former

    PU Sandwich Panel Top Sheet And Bottom Sheet Roll Forming Machine

    This roll forming machine is designed to produce the top sheet and bottom sheet of PU sandwich panel according to customer's profile drawing. Main work process of this machine is decoiling, material guiding, roll forming and cutting.

    Main Components Of This Machine

    1. 5Ton Manual Decoiler1 unit


    2. Roll Forming Machine

    a. Manual Feeding Guide

    1 unit

    b. Roll Forming Machine
    c. Hydraulic Cutting
    3. Product Output Support Tables1 unit
    4. PLC Control System1 unit
    5. Hydraulic System1 unit

    Main Machine Technical Parameters

    1. Materials: Galvanized steel coils, PPGI coils, Color Steel Coils

    2. Material thickness: 0.3-0.7mm

    3. Main motor power: 5.5kw

    4. Forming stations: 16 stations

    5. Forming speed: 10-15m/min

    6. Shaft diameter: 76mm

    7. Roller material: high grade NO.45 steel with heat treatment and chrome plated of 0.05mm thick

    8. Hydraulic power: 3kw

    9. Cutting blade material: Cr12Mov

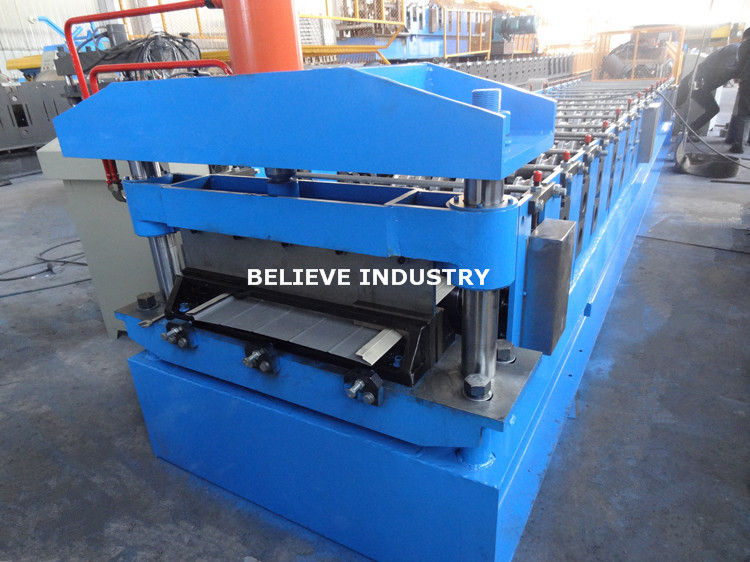

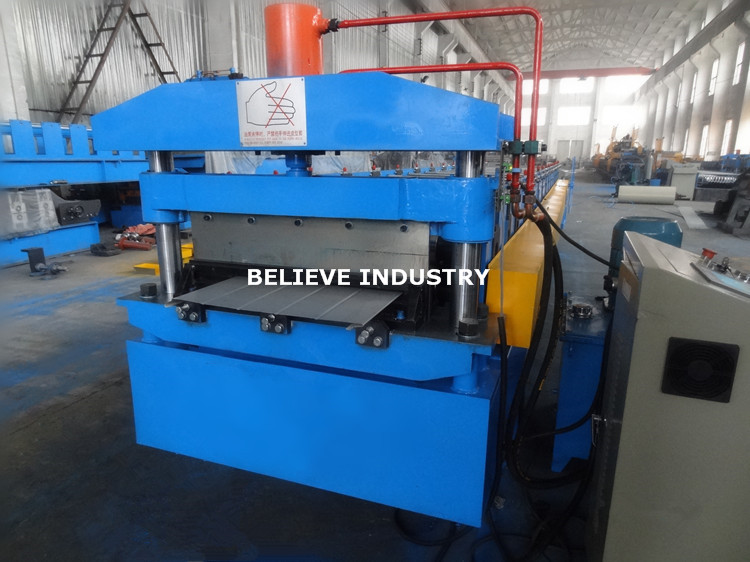

    Machine Pictures





    Believe Industry Company is engaged in all kinds of metal roll forming machine designing and manufacturing. If you have any questions or need more machine details, Please Contact Us.
