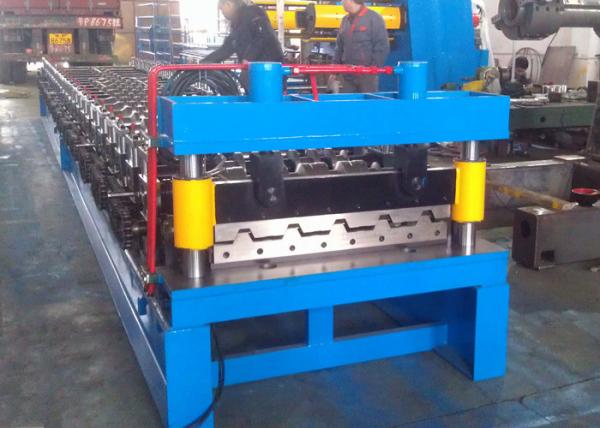

South African IBR Roofing Sheeting Roll Forming Machine

IBR Roofing Sheeting Roll Forming Machine is for producing IBR roofing sheeting which is widely used in South Africa.

What's IBR Roofing Sheeting?

Since it was first introduced to South Africa in 1958, IBR has enjoyed great popularity for use as side cladding or roofing material in commercial, industrial and residential buildings. IBR got its name from the abbreviation of “Inverted Box Rib”, which has become a household name in the South African building industry. Actually, IBR is a square fluted profile with an effective covering width of 686 mm or 890mm.

Believe Industry Company have several design of IBR Sheeting Machine for different requirements.

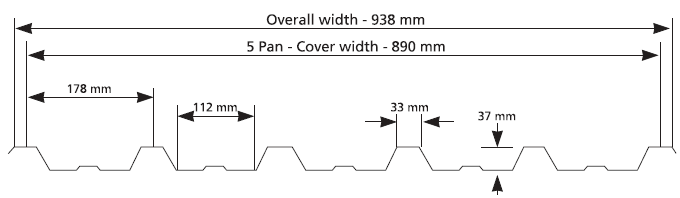

Profile Drawings of IBR Roofing Sheeting

IBR Roofing Sheeting Roll Forming Machine Components

1. Hydraulic Uncoiler
2. Pre-cutting Device
3. Roll Forming Machine Mill
4. Cutting Device
5. Collection Table
6. PLC Controlled Panel
7. Hydraulic Station
8. Curving Machine( Optional)

IBR roofing Sheeting Roll Forming Machine Layout

Production Process: Uncoiling-- Feeding-- Roll Forming-- Cutting-- Collecting

Brief Specifications of IBR Sheeting Machine

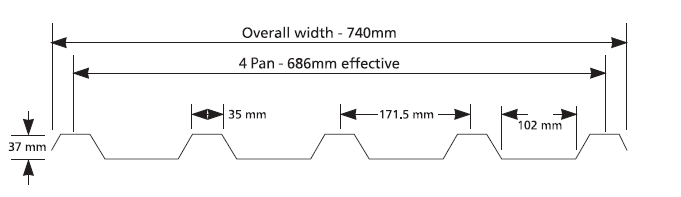

686 IBR Roofing Sheet For Reference
