Interior Drywall Framing Furring Ceiling Roof Batten Roll Forming Machine

Brief Introduction Of Furring Ceiling Batten Roll Forming Machine

This roll forming machine is used to produce furring ceiling battens. This machine employs high grade steel panel structure and chain driving (transmission) system. Main process of this ceiling batten machine is decoiling, material feed guiding, punching holes and slots, roll forming and cutting.

Main Components

Main Technical Parameters

1. Applicable materials: galvanized steel coils, PPGI coils

2. Material thickness: 0.5-0.8mm

3. Roll forming stations: 13 stations

4. Roll forming speed: 0-15m/min

6. Diameter of shafts: 60mm

7. Material of rollers: high grade 45# steel with heat treatment and chrome plated

8. Main motor power: 5.5kw

9. Cutting power: 4kw

10. Material of cutting blade: Cr12 mold steel

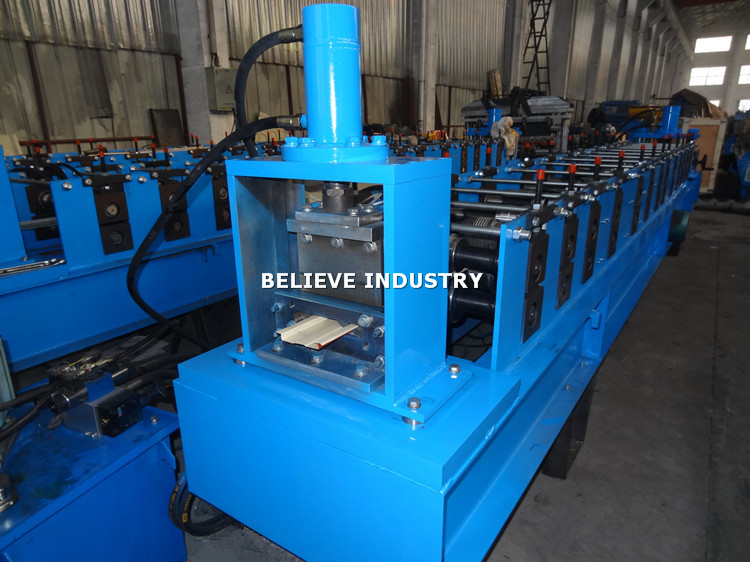

More Machine Pictures
