Servo Flying Cutting Drywall Framing C Stud Roll Forming Machine To The Philippines

Brief Introduction Of Servo Flying Cutting C Stud Roll Forming Machine

This roll forming machine is used to produce interior drywall framing c studs. This machine employs servo flying cutting device to ensure the length precision and speed of the whole line. This machine employs water cooling system in order to reducing the wear of the material suface at a high running speed. Main process of this machine is decoiling, material feed guiding, material leveling, roll forming, product straightening and cutting.

Main Components

Main Technical Parameters

1. Applicable materials: galvanized steel coils

2. Material thickness: 0.5-1.2mm

3. Roll forming stations: 14 stations

4. Roll forming speed: 20m/min

6. Diameter of shafts: 60mm

7. Material of rollers: high grade 45# steel with heat treatment and chrome plated

8. Main motor power: 18.5kw

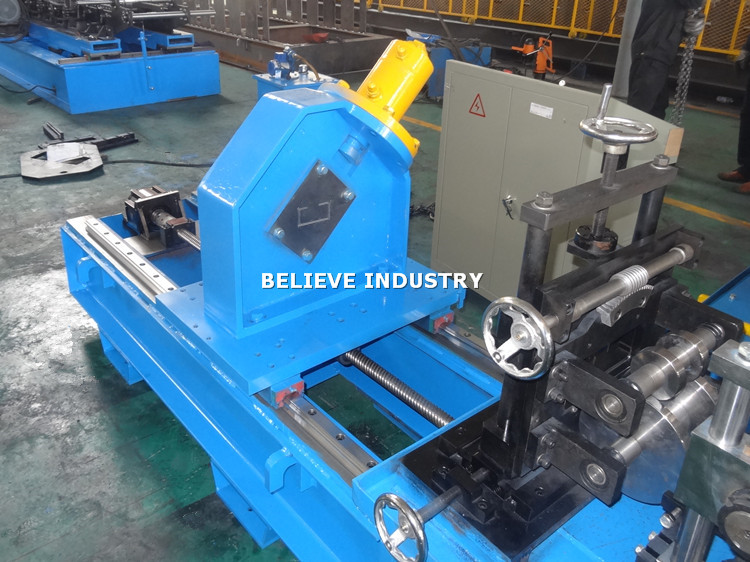

9. Cutting power: 3.7kw for servo flying cutting

10. Material of cutting blade: Cr12 mold steel

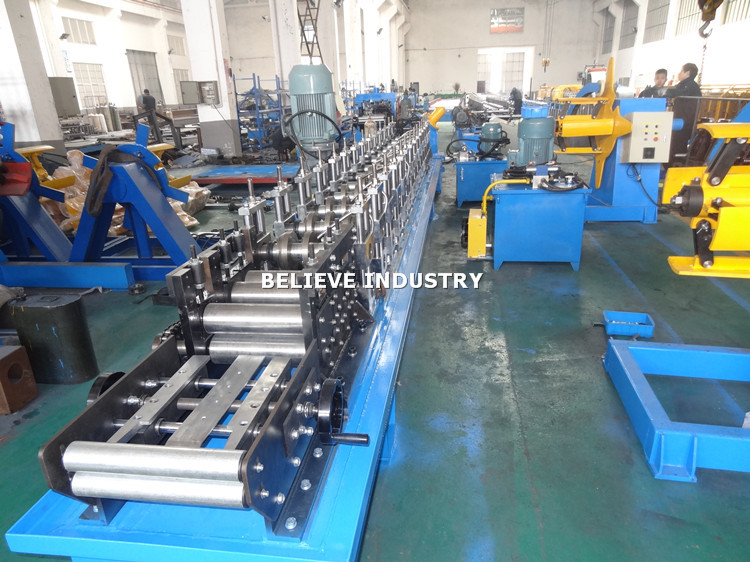

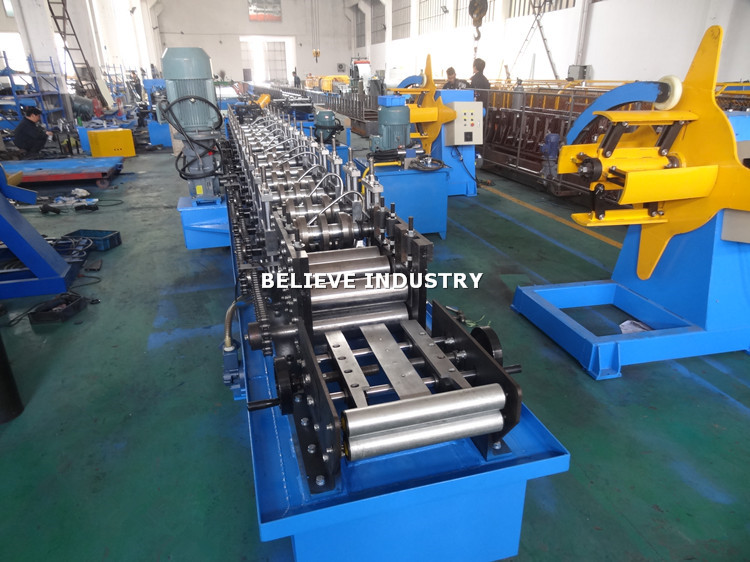

More Machine Pictures
