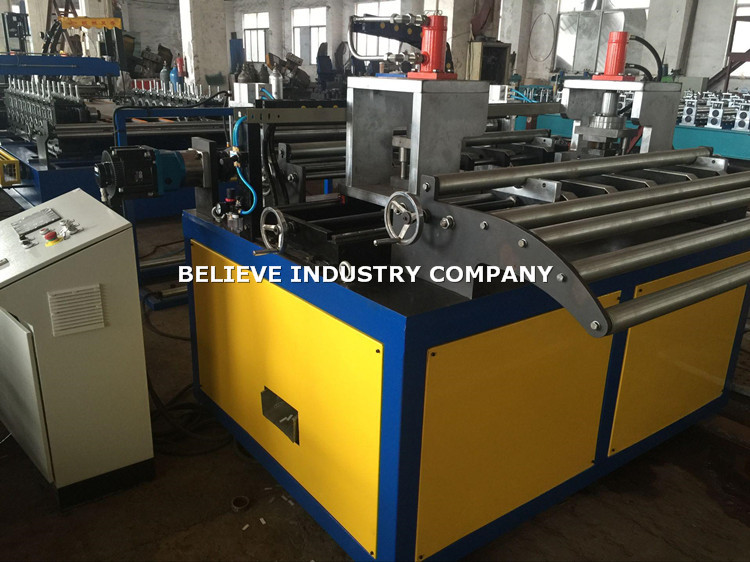

    Metal Rack Roll Forming Machine , Automatic Width Adjust Shelf Panel Roll Former

    Metal Shelf Panel Roll Forming Machine With Automatic Width Adjust


    Description

    This roll forming machine is for producing metal shelf panels with 0.6-0.8mm thick galvanized steel coils and color steel coils. Manufacturers used to produce shelf panels by shearing machine, punching press and bending machine. This production method has the disadvantages of large labor cost and low productivity.


    Metal shelf panel roll forming machine is a good choice which combine roll forming with punching, cutting and bending in one line. Whole line controlled by PLC control system is fully automatic from decoiling to outputting final product. Users only need to set related production data on touch screen, the machine will run automatically and stop working after finishing. Thus, as usual one worker can well operate the whole production line.


    Machine Features

    • Fully Automatic & Easy Operation

    Users only need to input production data on the touch screen, whole line is controlled by PLC control system

    • Strong & Long Life

    H beam steel welded machine base; Shafts and rollers surface are chrome plated after heat treatment

    • Width Adjustable

    Roller stands can move in and out through linear guide

    • High Precision

    Every procedure in manufacturing (material processing, assembling, etc) are under strict quality control


    Main Technical Specifications

    * 5Ton Manual Decoiler

    1. Type: manual adjust the mandrel expansion and tension; unpowered decoiling

    2. Expansion And Tension Range: 420-520mm

    3. Max Coil Outer Diameter: 800mm

    4. Max Loading Capacity: 5000KG


    * 7-Roller Leveling Device

    1. Type: 2 rollers for pinch feeding; 7 rollers for leveling, up 3 and down 4

    2. Diameter Of Rollers: 80mm


    * Hydraulic Punching Unit

    1. Type: 4-pillar-guide type, cylinder offer power for punching

    2. Hydraulic Power: 7.5KW


    * Roll Forming Unit

    1. Forming Stands: 24 stands

    2. Feeding Width: 700mm

    3. Material Thickness: 0.6-0.8mm

    4. Forming Speed: 2-6m/min including punching, cutting and bending

    5. Forming Power: 7.5KW

    6. Roller Material: No.45 steel, quenching and tempering, surface with hard chrome plated

    7. Shaft Material: Cr40, diameter: 70mm

    8. Drive: Chain Drive

    9. Roller stand panel: 18mm


    * Cutting And Bending

    1. Type: shelf panel bends when cutting

    2. Hydraulic Power: 5.5KW for cutting and bending

    3. Cutting Blade Material: Cr12Mov, HRC58-62



    Machine Components And Layout

    Decoiling--->Leveling--->Punching--->Roll Forming--->Cutting & Bending--->Final Product


    5Ton Manual Decoiler

    Hydraulic Cutting + Bending Device


    7-Roller Leveling Device


    Unpowered Product Support Table


    Hydraulic Punching + Servo Feeder


    Electric Control Cabinet


    Roll Forming Unit


    Hydraulic Station



    If you need more machine details, please contact us directly.
