Self Seamed Type Step Beam Roll Forming Machine With Flying Saw Cutoff

Description

This roll forming machine is used to produce seamed type step beams for storage system. Main components of the box beam roll forming machine are decoiler, feeding and guiding device, roll former, cutter, hydraulic pump station, and control cabinet, etc.

Work Process Of Step Beam Rollforming Line

Steel coil loading on the decoiler---steel coil unwinding---feeding and entry guiding---material levelling---roll forming---straightening---saw cutting---final product

Machine Features

• Line speed can reach up to 20m/min.
• Drive by chain and sprocket.
• Levelling device for good flatness of the material before roll forming.
• GCr15 roller material and solid shafts undergo heat treatment and with Chrome plated for great strength.
• Turkey straightener for perfect straightness of the step beams.
• Continuous production line with flying saw cutting device, which can do cutting without stopping roll forming.
• Water cooling and luricating system equipped, coolant liquid will spray on the rollers when machine running.

Machine Parameters

No.	Item	Parameter	Profile Drawing
1.	Raw Material	cold rolled steel coils
2.	Material Thickness	1.5mm to 2.0mm
3.	Roller Stations	32 stations
4.	Line Speed	15-20m/min
5.	Main Power	15kw * 2
6.	Cutting Motion	flying saw cutting
7.	Drive	by chain and sprocket
8.	Control System	PLC control system

Loading And Packing Details

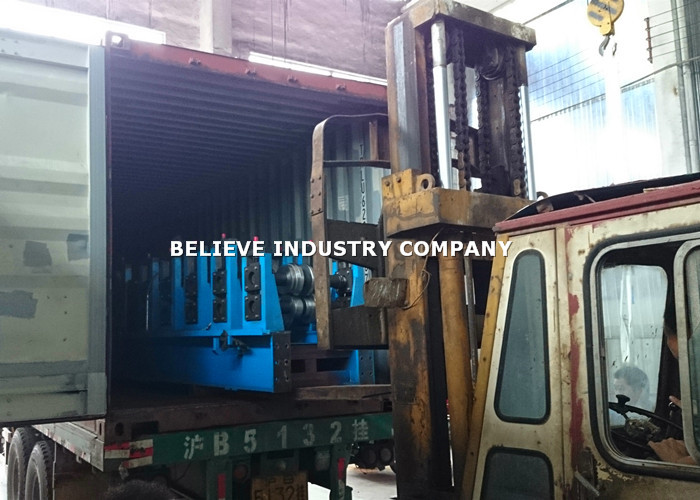

1. A 40GP container is needed for loading whole step beam rollforming line.

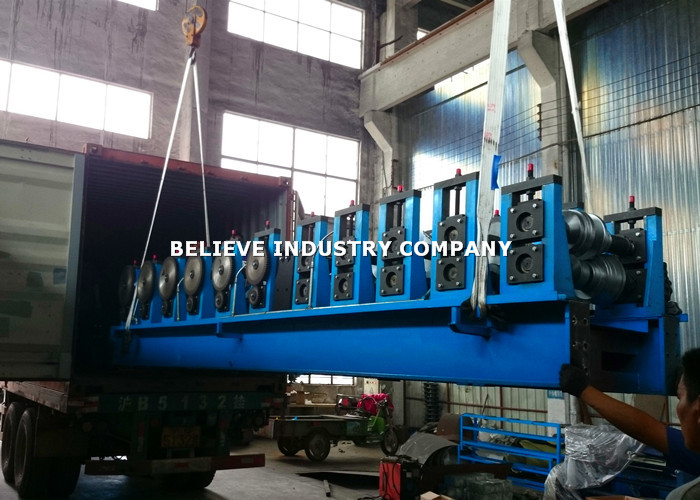

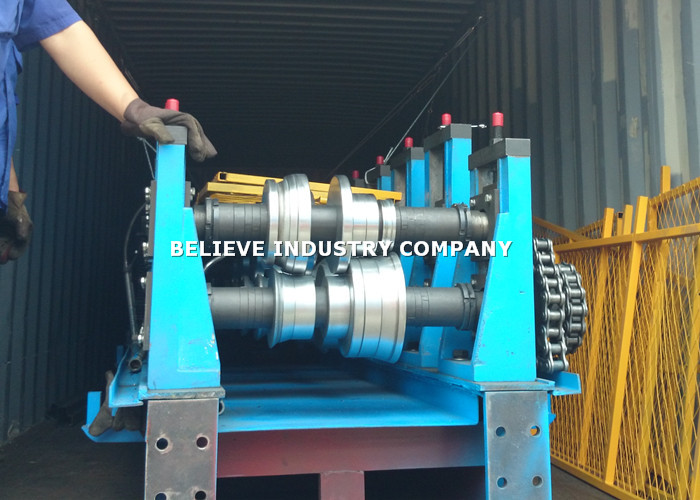

2. Main machine is fastened inside of the container with steel wire with nude packing

3. Control cabinet and hydraulic station are wrapped with plastic film and fastened inside of the container
