Highway Guardrail Roll Forming Machine

Believe Industry Company offers various desgins of highway guardrail machines for producing w profile(2 wave) and thrie-beam profile(3 wave) guardrail panels.

W profile & Thrie-beam Highway Guardrail Machine

This W profile & Thrie-beam higway guardrail machine can produce 2 types of highway guardrail panels in one machine. Main material can be rolled are hot rolled steel coils and galvanised steel coils with 1.5-3.0mm thickness.

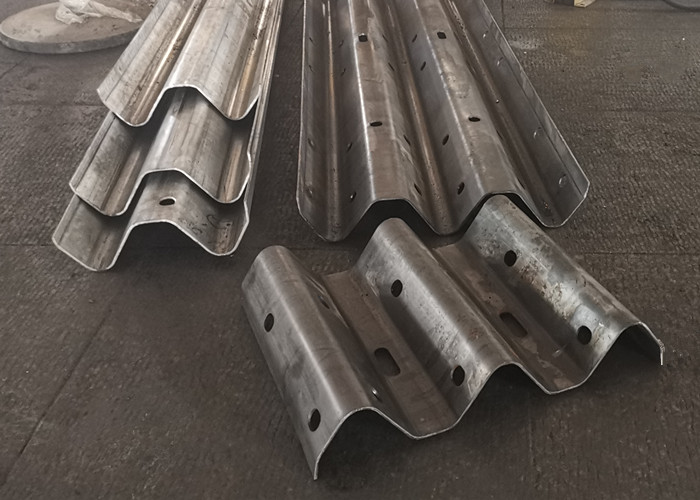

2 Wave & 3 Wave Highway Guardrail Panel (Profiles Only For Reference)

Main Components and Specifications of the Highway Guardrail Panel Machine

Machine Components

5T/6T/8T decoiler, feeding & guiding unit, levelling unit, punching unit, roll forming unit, hydraulic cutting unit, collecting table, electric control cabinet, hydraulic station

Machine Workflow

Coil unwinding, feeding and guiding, levelling, punching holes, roll forming, cutting to length, final products collecting

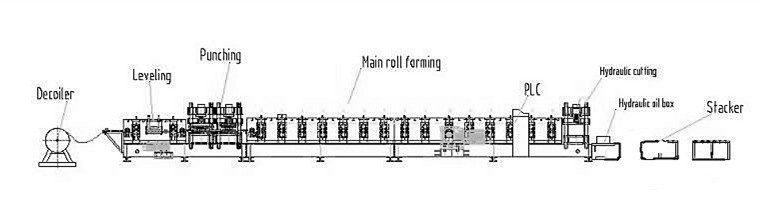

Machine Layout (For Reference Only)

For more highway guardrail machine details, please contact us!
