2 Waves Highway Crash Barrier Roll Forming Machine With Gear Box Drive

Brief Description

This roll forming line is mainly composed of decoiler, leveller, punching unit, roll former, cutting device, product table, control cabinet and hydraulic station. Whole line controlled by PLC control system is of high automation. Only 2 or 3 workers are needed for a production line.

Coil Unwinding--->Entry Guiding--->Levelling--->Punching--->Roll Forming--->Cutting--->Final Product

Machine Advantages

• High Automation and High Efficiency

Fully automatic continuous production line including material levelling, punching, roll forming and cutting.

• Stable Performance with Long Lifetime

Roll forming machine has good performance with solid shafts + GCr15 rollers + gear box drive.

• Easy Operation and Low Labor Intensity

With PLC control system, users only need to input desired production data such as production quantity and cutting length.

• High Quality of Final Products

High precision of punching location and dimensions and exact accuracy of cutting length.

Main Technical Specifications

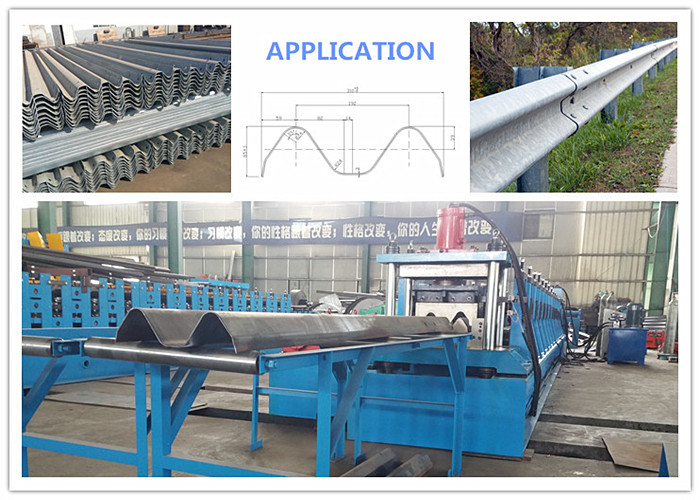

Usage And Application

BELIEVE INDUSTRY COMPANY is one professional enterprise supplying one-stop service for roll forming machines and coil process equipment. We have an energetic team experienced in designing & manufacturing, import & export trading, installation & after-sale service. Our factory is located next to Shanghai in Wuxi, Jiangsu Province. All our machines are custom-made exactly, and enjoy high popularity in domestic and foreign market, particularly in Southeast Asia, Europe, America, Africa, Middle East, Australia, Canada, etc.

• Roll Forming Machine

>   Machine For Purlins: c purlin, z purlin, sigma profile, u purlin

>   Machine For Metal Sheets: corrugated sheet, IBR sheet, trapezoidal sheet, R101 sheet, box profile sheet, tile shape roof, roof ridge cap, metal valley, roof deck, composite floor deck, dovetail deck

>   Machine For Door: door frame, window frame, roller shutter door, garage door panel, door track

>   Machine For Storage: supermarket shelf panel and rack, pallet rack for warehouse, box beam, step beam

>   Machine For Cable Tray: solid bottom cable tray, perforated cable tray, ladder cable tray, cable tray cover

>   Machine For Light Steel Section: stud and track, furring channel, roof batten, ceiling batten

>   Machine For Rain Gutter: half round gutter, OG gutter, front high gutter

>   Machine For Downpipe: round downpipe, square downpipe

>   Machine For Custom Profile: highway guardrail, metal fence post, vineyard post, etc

• Mechanical Power Press

All kinds of C Frame, D Frame, H Frame, Single and Double Crank Power Press.
