Anti Fire Door Frame Roll Forming Machine With Saw Cutting Device

Brief Description

BELIEVE INDUSTRY supply full ranges of metal roll forming machines for steel door series, such as roller shutter door forming machine, garage door panel and guide track manufacturing equipment, steel door frame production line, etc.

This roll forming machine is designed for producing anti fire steel door frames with custom profiles. Main material can be roll formed are galvanized steel coils with the thickness of 1.2mm to 1.8mm.

Work Process

Decoiling--Feeding and Guiding--Pre-punching--Roll Forming--Cutting--Run out

Machine Features

• With PLC automatic control system for whole door frame production line
• Electrically driven via 2" chain and sprocket
• H beam steel welded machine base with steel plate welded on base to form main machine structure
• Hydraulically powered pre-punching device for punching holes and lock position

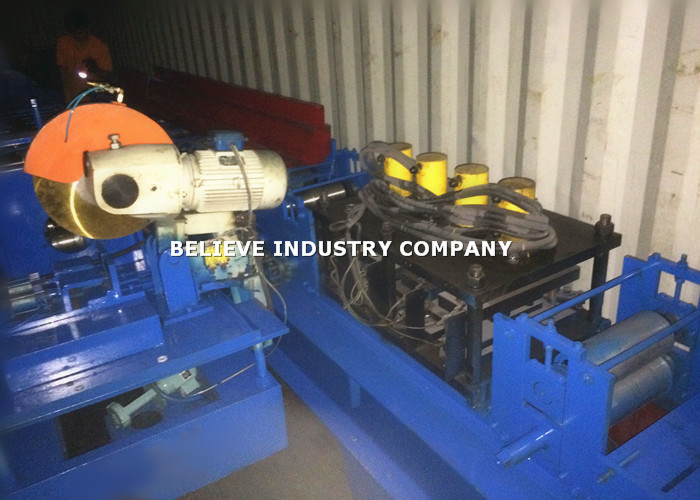

• Post saw cutting device cut the formed door frame into desired length
• GCr15 roller with CNC machining and go under heat treatment and chromed
• Shafts are solid and go under heat treatment for high strength

Components Of Steel Door Rollforming Line

Main Technical Parameters

a. Applicable Material: galvanized steel coils

b. Material Thickness: 1.2-1.8mm

c. Main Motor Power: 17.5kw

d. Forming Stations: 20 stations

e. Forming Speed: 10-15m/min

f. Cutting Type: saw cutting, stop to cut

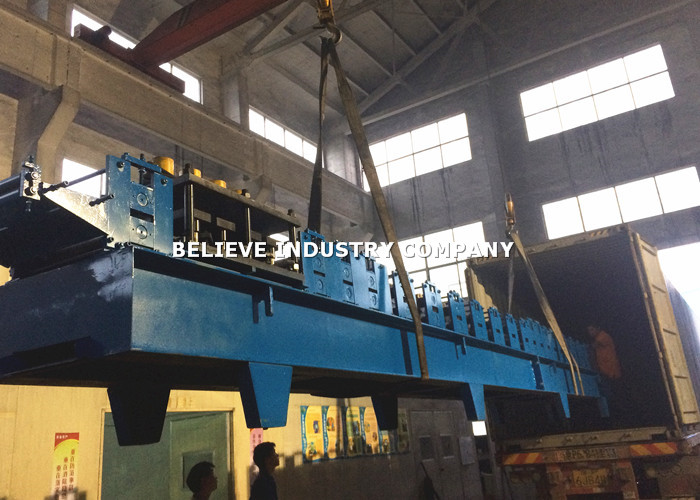

Packing And Loading Details

If you need more machine details, please contact us!
