Steel Mute Guide Track Roll Forming Machine For Roller Shutter Door

Brief Description

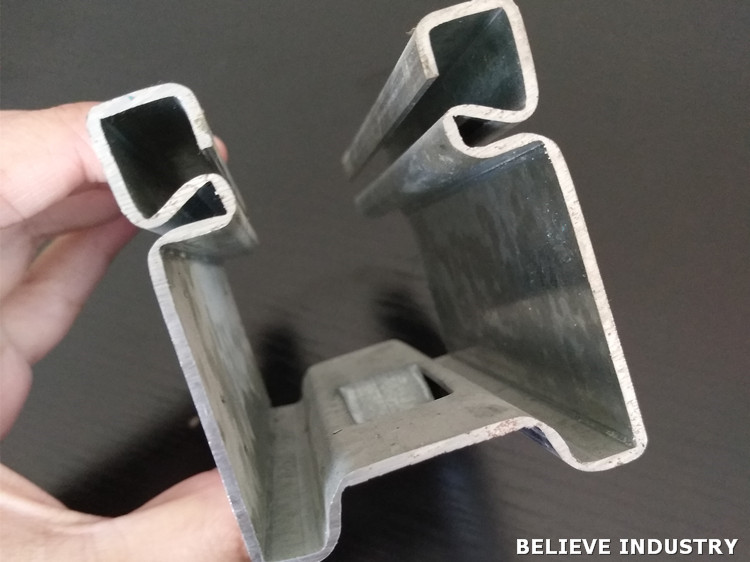

This steel roll forming machine is available to produce mute guide tracks for roll-up doors based on clients' profile drawing and requirement. Main material can be roll formed are galvanized coils with thickness of 1.0mm to 1.5mm.

Work Process: uncoiling--leveling--guiding--roll forming--straightening--punching--saw cutting

Machine Features

• Control system: PLC automatic control system
• Drive: 2.0" chain drive

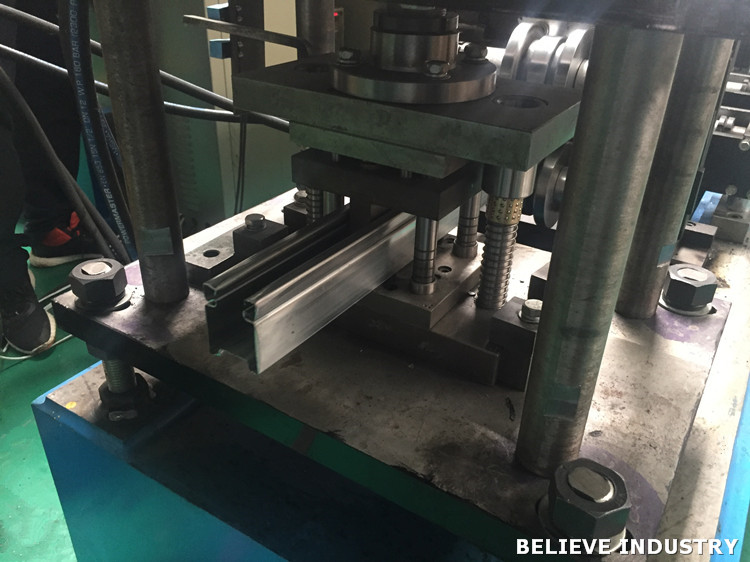

• Post punching: punch screw holes and slots after roll forming
• Turkey straightener: ensure perfect straightness of the guide tracks
• Saw cutting: with cooling liquid spraying on saw blade when cutting, with less spark and low burr
• Machine base and roller stands: go under CNC gantry milling processing for high precision
• Rollers and shafts: go under vacuum heat treatment for higher strength

Main Technical Parameters

No.	Item	Technical Parameters	Profile Drawing
1.	Material Can Be Formed	galvanized steel coils
1.	Material Thickness	0.8-1.5mm
2.	Roller Stations	20 stations
3.	Main Forming Power	15kw
4.	Forming Speed	12-15m/min
5.	Drive	chain drive
6.	Control System	PLC control system
7.	Cutting Type	saw cutting
8.	Hydraulic Power	7.5kw

Machine Layout And Pictures Of Mute Track Rollforming Line

Believe Industry Company have full range of roll forming machines for roll-up doors components such as roller shutter slats machine, roller door panel rollformer, PU roller shutter forming machine, steel door frame manufacturing equipment, etc.

If you have any questions or need more machine details, please contact us!
